Stock code873880

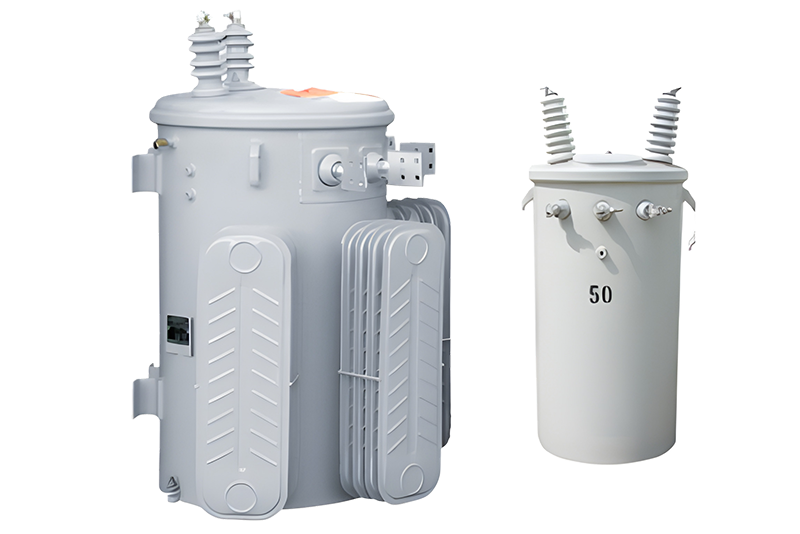

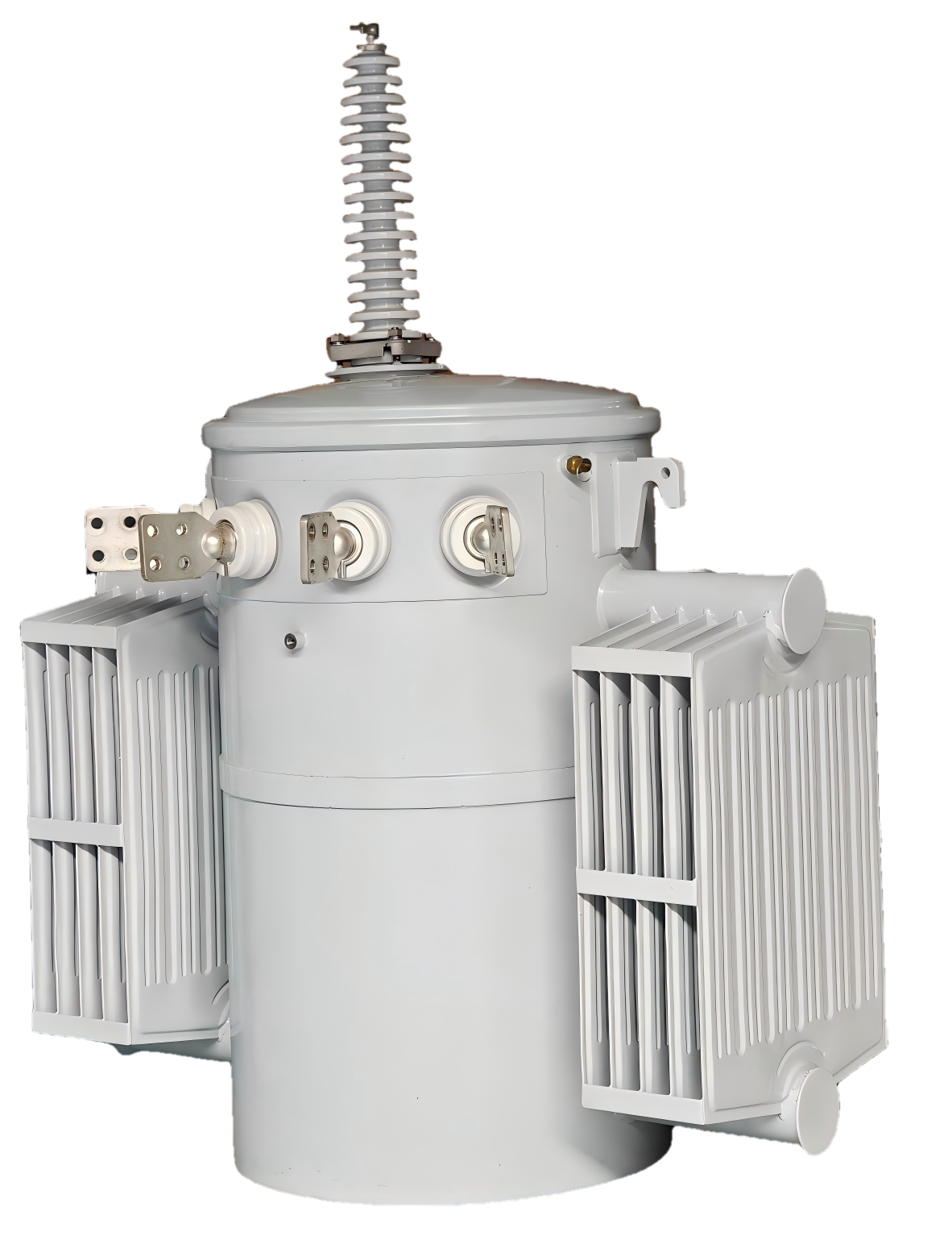

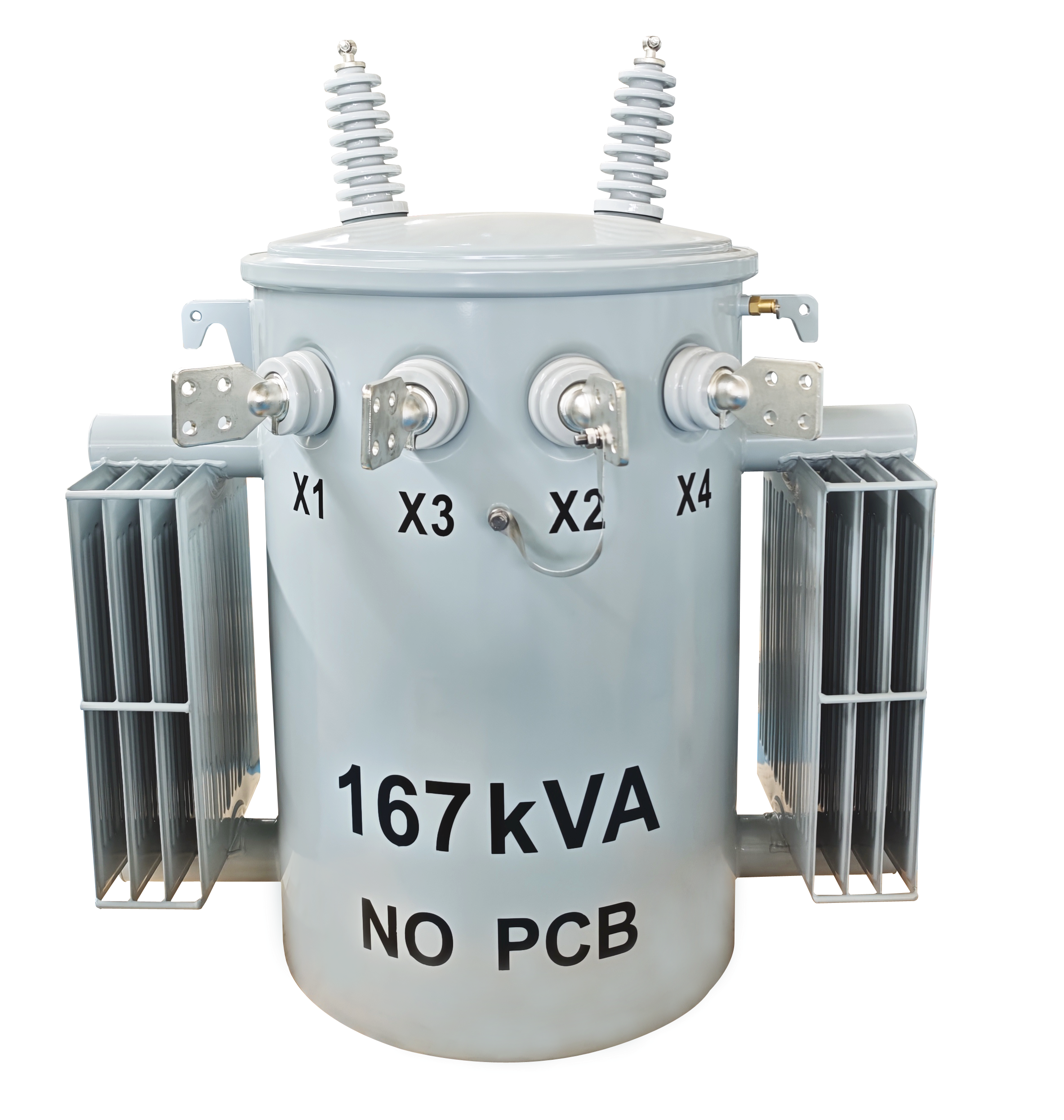

Single-phase Pole-mounted Transformer

Single phase pole-mounted distribution transformers are mainly used in the electricity transmission anddistrbution system, it can be used for lighting and power supply in all city. town and remote areas. Single phase pole-mounted transformer can be used separately, and three single phase transformers can be also connected together,working as a three phase transformer. It is cost-saving, safe, compact, easy to repair and maintain.

Keyuan can supply full line of UL-certified pole-mounted transformers.


Product Features

Specification:

kVArange: 5kVA to 333kVA

HV: 4.16 - 34.5kV

LV: 120/240V, 240/480V or others

Cooling type: ONAN

Frequency: 50 or 60Hz

Primary BIL: 150 or 125 or 95kV, Secondary BIL: 30kV
Conditions of Use
Application Cases
